CUV-10-4-WAY is a cuvette sample holder with four-side optical access. It integrates four collimators and uses SMA905 fiber interfaces. Coupled with Oceanhood Taiwan’s’ fiber spectrometers and light sources, it supports multiple measurement modes, including absorbance/transmittance, reflectance, and fluorescence. A professional light-tight cap is included to block ambient light and ensure accurate results. Optional filters across different wavelength bands can be installed for fluorescence testing. Filter size requirement: Ø8 mm, thickness ≤ 2 mm.
-
Features
- Four f/2 quartz collimator lenses, UV-capable down to 180 nm.
- Multiple measurement modes: absorbance, transmittance, and fluorescence.
- Removable collimators from the holder; SMA905 interface, compatible with a wide range of optical measurement setups.
- Supports 10 mm pathlength cuvettes.
- Measurement wavelength range: 200 nm – 2 µm.
- Slide-in filter design for easy wavelength selection.
- Light-tight cap effectively prevents ambient light from affecting measurements.
-
Dimensional drawing
-
Specifications
| Model | CUV-10-4-WAY |
| Dimension | 60×60×60mm |
| Number of channels | 4 |
| Fiber interface | SMA905 |
| Optical pathlength | 10mm |
| Collimator configuration | 4×COL-UV-10 (200nm-2µm) |
| Base material | Aluminum alloy |
| Filters | Customizable |
| Lens focal length | 5mm |
| Beam diameter | 5mm (circular) |
| Cuvette size | 12.5×12.5×45mm |
-
Test items table
| Test item | Setup diagram | Usage diagram |

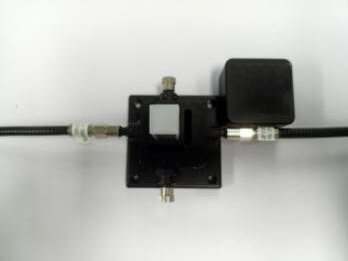

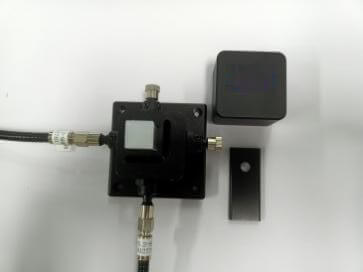

| Absorbance / Transmittance |  |

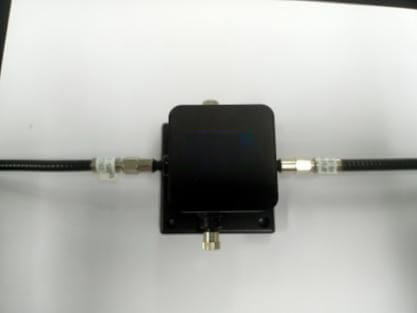

 Light-tight cap design isolates ambient light to ensure accurate measurements. |

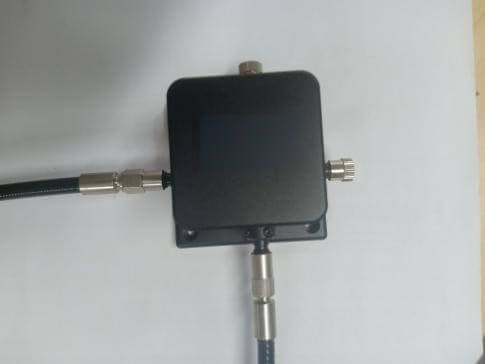

| Fluorescence |  Slide-in filter design for convenient wavelength selection. Filter size: Ø8 mm, thickness ≤ 2 mm. |
 |

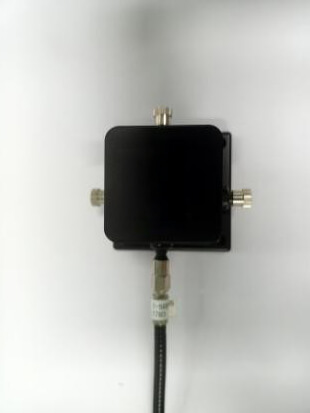

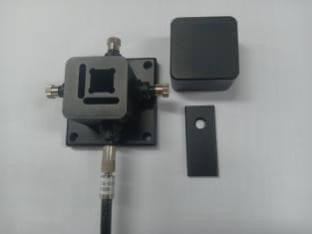

| Liquid reflectance test |  Light baffle design helps stabilize the light source output during measurement. |
 |
