532nm Raman Probe

DETAIL

532 nm Raman probe is used together with a 532 nm semiconductor laser and a fiber-optic spectrometer to perform Raman spectral measurements. By equipping different sampling accessories, the probe can be used to measure Raman spectra of solid, liquid, and powder samples.

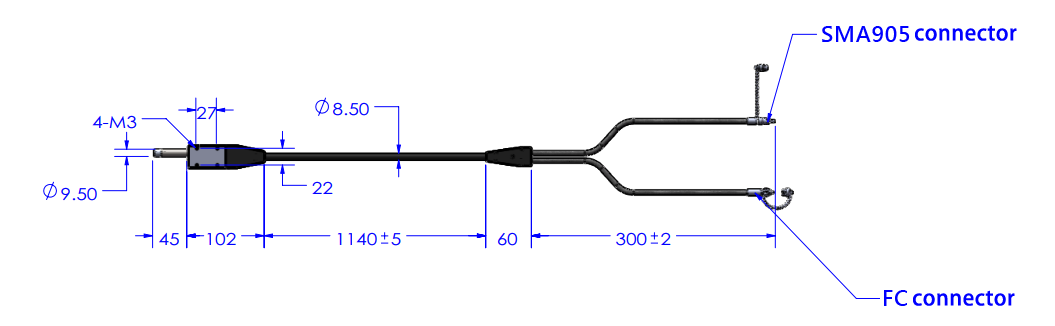

  • Dimensional drawing



  • Features

  • High coupling efficiency
  • Interchangeable front focusing lens
  • Fiber tail withstands tensile force above 50 N; durable and resistant to damage
  • Maximum operating temperature up to 80°C
  • Good repeatability of insertion and extraction
  • High batch consistency



  • Specifications

1. Standard
Model Excitation Wavelength (nm) Spectral Range (cm-1)
RPB-532-1.5-FS 532 150-6500

Main Parameters
Probe body size 102mm×30mm×13mm
Front probe rod length 45 mm
Fiber length (combiner section) 115cm±2cm
Fiber length (splitter section) 30cm±2cm
Laser interface FC/PC
Spectrometer interface SMA905
Probe working distance 7.5mm±1mm
Fiber core diameter 105 µm (excitation), 200 µm (collection)
Combiner armoring 8.5 mm plastic-coated double-clamped metal tube, 50N tension resistance
Operating temperature Probe body: -20℃～80℃
Operating humidity 5%-80%

Note: Above specifications are standard configurations. Customized versions are available upon request.


2. Custom (non-standard) probe options
RPB series Raman probes can be customized with three additional appearance/structural options:
Specification Standard electrical-trigger probe 90-degree right-angle probe Probe without fiber
Model RPB-532-1.5T-XX RPB-532-1.5L-XX RPB-532-N-XX
Product
Laser interface FC/PC (customizable)
Spectrometer interface SMA905 (customizable)
Working distance 7.5mm (customizable)


Model naming guide:

Raman probe (RPB)

Fluorescence probe (FPB)

+

Laser wavelength

+



Fiber length

(+L means right angle probe)

(+T means setting the trigger mode)

+


Types of laser & spectrometer connectors

(FC/PC, SMA905…)


For example: RPB-532-1.5L-FS

RPB: Raman probe

532: Laser wavelength

1.5: Fiber length (1.5m)

L: Right-angle surface probe

F: FC (laser connector)

S: SMA905 (spectrometer connector)





  • Applications

  • Rapid food-safety screening
  • Material inspection
  • Illicit drug detection
  • Biomedical analysis
  • Chemical process monitoring
  • Gemstone identification




  • Raman Spectrum




Test condition:

  • Integration time: 300ms
  • Laser power: 50mW
  • Test sample: analytical pure ethanol placed in a 12.5mm×12.5×45mm cuvette.
