532nm Portable Raman spectrometer

DETAIL

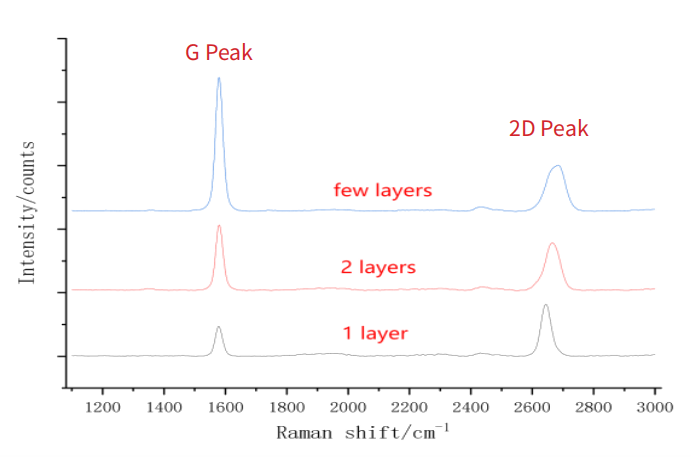

Portman-532 is equipped with a fiber spectrometer for Raman spectroscopy detection. It is easy to operate and the results of tests are objective and accurate. Compared with the traditional 532nm Raman spectrometer, the sensitivity of Portman has been greatly improved, it can detect weak Raman signals at the cellular level. It’s definitely a portable Raman spectrometer which can be used for the screening of raw materials, field testing, graphene synthesis reaction, biological medicine, material analysis and identification.

```
Features
```

Wide detection range;
High signal sensitivity, can distinguish the second order peak of silicon wafer;
Highly integrated, lightweight and compact;
High stability.

Specifications

Model	Portman-532 One-stage TE-cooled	Portman-532 Two-stage TE-cooled
Dimension	325×220×82 mm
Weight	~4.4 kg
Spectral range	200-3200cm^-1	200-3000cm^-1
Wavelength resolution	~8 cm^-1(can be customized)
Dark noise	<10 RMS
Dynamic range	8000：1	22000：1
Excitation wavelength	532±1nm, line width≤0.2nm
Laser power stability	≤3% P-P(@2hrs)
Lifetime of laser	5000hrs
Supply voltage	5V/4A
Output power	0-100mW (adjustable)
TE Cooling temperature	one-stage (-5℃)	two-stage (-25℃)
Filter laser cut-off depth	OD8
Operating distance of probe	7.5mm
Operating temperature	0-40℃
Operating humidity	5-80%
