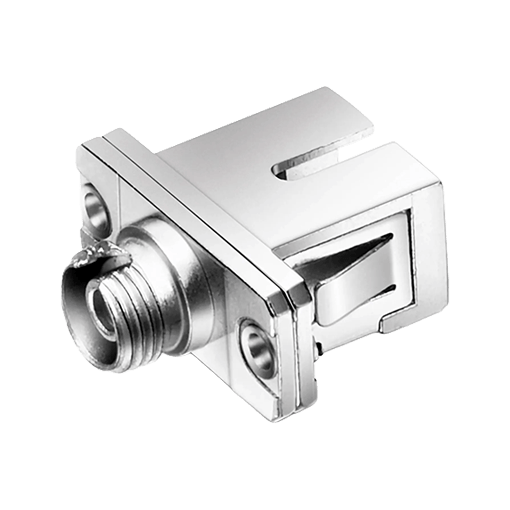

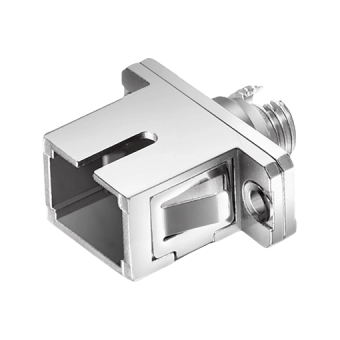

The FC/UPC Female to SC/UPC Female Fiber Optic Adapter is designed to connect fiber optic connectors with different interfaces, providing precise interconnection between FC/UPC and SC/UPC fiber connectors for stable fiber connections.
Featuring a simplex configuration, the adapter is suitable for both single-mode and multimode fibers. The high-precision zirconia ceramic sleeve helps maintain accurate fiber alignment, with a typical insertion loss of ≤0.2 dB.
The adapter features a flanged mounting design with stainless steel clips for tool-less snap-in installation and can also be secured using M2 screws. Protective dust caps are included on both ends to help keep the interior of the adapter clean when not in use.
Featuring a simplex configuration, the adapter is suitable for both single-mode and multimode fibers. The high-precision zirconia ceramic sleeve helps maintain accurate fiber alignment, with a typical insertion loss of ≤0.2 dB.
The adapter features a flanged mounting design with stainless steel clips for tool-less snap-in installation and can also be secured using M2 screws. Protective dust caps are included on both ends to help keep the interior of the adapter clean when not in use.
-
Features
- FC/UPC Female to SC/UPC Female fiber connection
- Simplex configuration
- Suitable for single-mode and multimode fibers
- Typical insertion loss of ≤0.2 dB
- High-precision zirconia ceramic sleeve
- Protective dust caps help keep the adapter interior clean
- Stainless steel clips for tool-less snap-in installation
- Flanged mounting design
- Compatible with M2 screws for mounting
-
Specifications
| Model | AD-FC-SC-SM-SXC-FS |
| Connector 1 | FC/UPC Female |
| Connector 2 | SC/UPC Female |
| Body style | Simplex |
| Fiber mode | Single Mode / Multimode |
| Insertion loss | ≤0.2 dB |
| Durability | 1000 times |
| Operating temperature | -25～70°C |
