The OC-FM2536 Rectangular Filter Mount is designed for 25 × 36 mm rectangular optical components with a maximum thickness of 3 mm. Made of aluminum with a black anodized finish, it features two-axis ±2° angular adjustment with a locking function for securing the position after alignment. With overall dimensions of approximately 63 × 54 × 24 mm, the mount is suitable for mounting, positioning, and fine angular adjustment of optical filters and other rectangular optical components.
-
Dimensional drawing
-

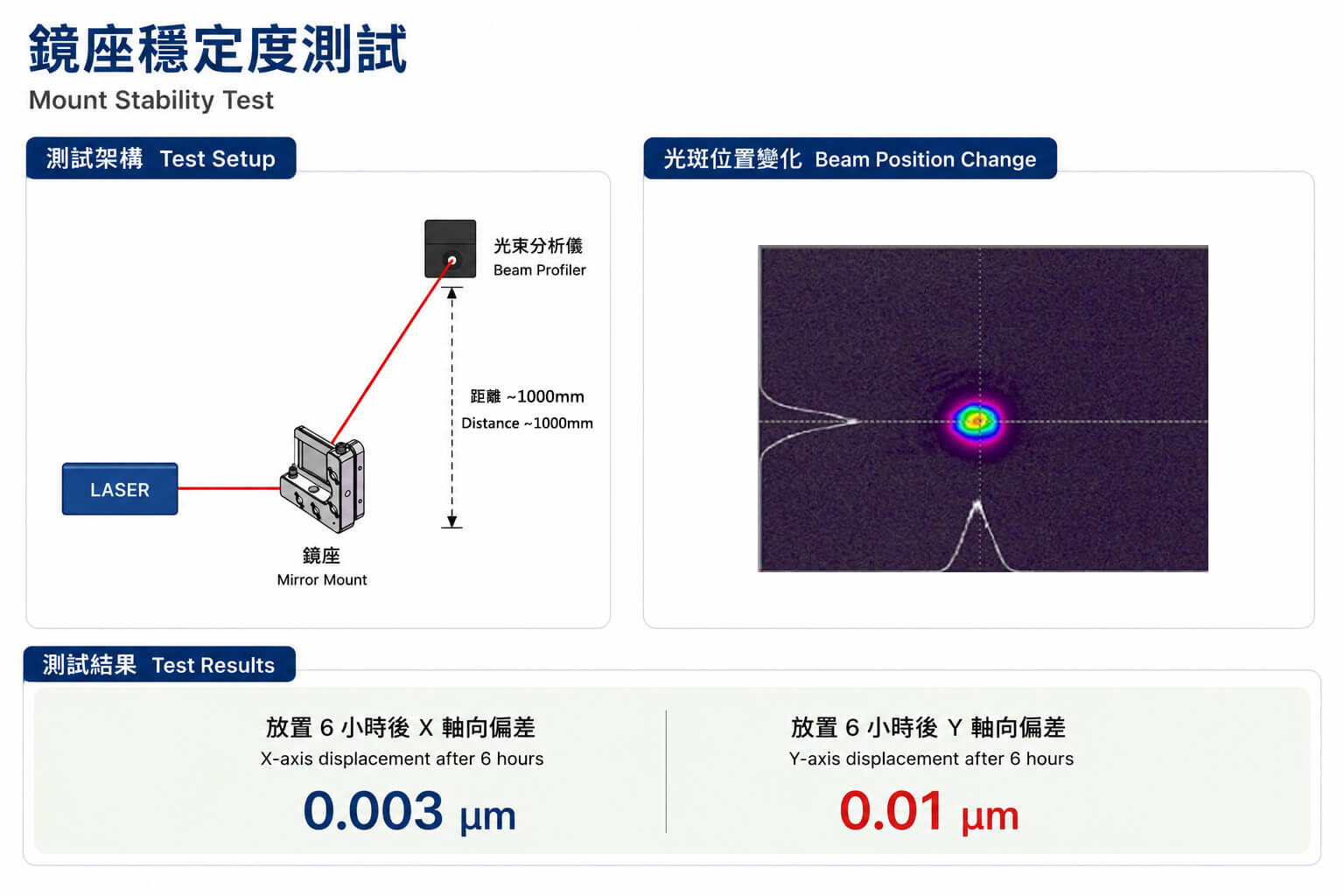

Stability test
※ Test results are for reference only. Actual performance may vary depending on the test environment and setup.
