Spark is a cooled Ethernet spectrometer featuring a compact design, configurable spectral range, and excellent stray light suppression performance.

It utilizes RJ45 network transmission with a communication distance of up to approximately 100 meters. The twisted-pair design provides strong resistance to electromagnetic interference, enabling centralized management and remote control of multiple devices through a network switch.

The system is compatible with Windows and Linux operating systems and is suitable for transient spectroscopy measurements, LED and laser testing, color measurement, as well as applications in industrial and laboratory environments with complex electromagnetic conditions.




• Features

• Specification

• Products

Model	Spectral Range/nm		Spectral resolution/nm
	Start	End	10 µm	25 µm	50 µm	100 µm
Spark-200-340	200	340	0.15	0.20	0.30	0.50
Spark-200-400	200	400	0.20	0.25	0.35	0.60
Spark-200-430	200	430	0.20	0.30	0.40	0.65
Spark-200-520	200	520	0.30	0.35	0.50	0.85
Spark-200-630	200	630	0.40	0.55	0.80	1.20
Spark-200-870	200	870	0.50	0.70	1.10	1.70
Spark-200-1000	200	1000	0.60	0.95	1.30	2.00
Spark-300-430	300	430	0.20	0.25	0.35	0.55
Spark-300-1090	300	1090	0.65	1.00	1.40	2.10
Spark-400-500	400	500	0.25	0.30	0.40	0.55
Spark-400-570	400	570	0.25	0.35	0.45	0.70
Spark-400-600	400	600	0.30	0.35	0.55	0.75
Spark-400-1040	400	1040	0.55	0.75	1.20	1.80
Spark-500-650	500	650	0.30	0.40	0.50	0.70
Spark-500-680	500	680	0.30	0.40	0.60	0.80
Spark-500-770	500	770	0.35	0.50	0.65	1.00
Spark-600-730	600	730	0.35	0.40	0.50	0.75
Spark-600-760	600	760	0.35	0.40	0.60	0.80
Spark-600-850	600	850	0.40	0.50	0.75	1.00
Spark-600-980	600	980	0.50	0.65	0.90	1.30
Spark-700-840	700	840	0.35	0.45	0.60	0.80
Spark-700-940	700	940	0.45	0.50	0.75	1.00
Spark-700-1060	700	1060	0.50	0.65	1.00	1.30
Spark-800-910	800	910	0.40	0.50	0.60	0.80
Spark-800-1010	800	1010	0.50	0.55	0.80	1.10

Note: Resolution tolerance ±0.15 nm


• Dimensional drawing



• Typical spectrums

Dark Noise：Integration time 1ms (dark noise subtracted)


Typical Deuterium-Tungsten Lamp



• Applications

Transient spectroscopy

Through ultra-fast data acquisition, transient emission and absorption spectra during combustion processes can be captured in real time, enabling continuous monitoring of critical parameters such as temperature, species concentration, and combustion rate.

For example, Spark offers strong ultraviolet spectral response, making it suitable for engine temperature measurement. By analyzing spectral variations during combustion, combustion efficiency can be evaluated, allowing optimization measures to be implemented to reduce fuel consumption and lower exhaust emissions.

                                                  Combustion Spectrum



High-end on-site color measurement

By accurately capturing sample reflectance or emission spectra under high-temperature conditions, Spark enables analysis and evaluation of color characteristics based on the spectral distribution of light. It is widely used in the lighting industry, textiles and apparel, cosmetics, food and agriculture, as well as art and cultural heritage conservation. A key advantage of spectrometers in color measurement lies in their high accuracy and excellent repeatability, providing detailed spectral information for precise color analysis.

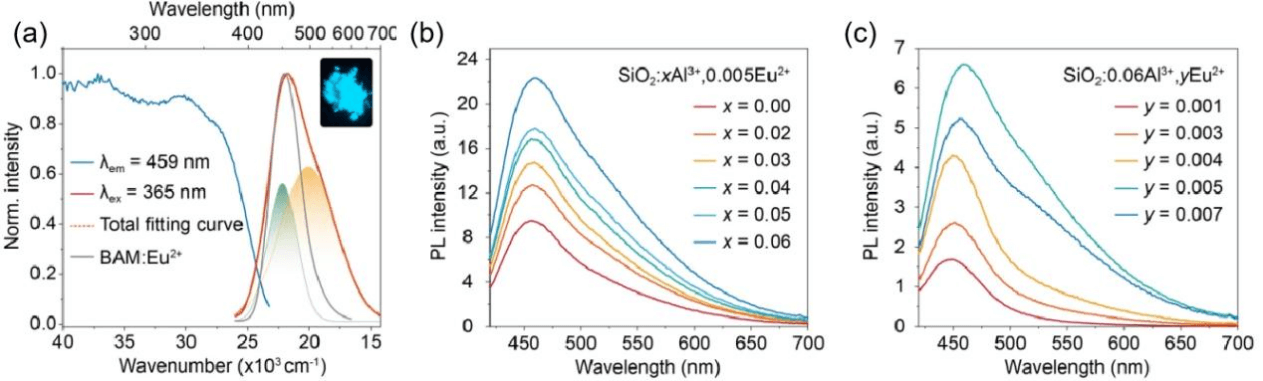

                Photoluminescence (PL) Spectra of Phosphors at High Temperatures



Cavity enhanced absorption spectroscopy (CEAS)
Cavity Enhanced Absorption Spectroscopy (CEAS) utilizes a high-reflectivity optical cavity to allow incident light to undergo multiple reflections, effectively extending the optical path length within the cavity and significantly enhancing weak absorption signals.

By detecting changes in transmitted or reflected light intensity using Spark, sample concentration or related optical parameters can be retrieved. This enables highly sensitive detection of trace substances in applications such as industrial process monitoring and environmental pollutant analysis.

                                   CEAS System Schematic Diagram



Raman spectroscopy
The Spark cooled IoT micro-spectrometer features high spectral resolution, low noise, and excellent stability. When integrated with an appropriate laser source, it can be used to build a cost-effective entry-level Raman spectroscopy system.

Such a system fulfills fundamental Raman analysis requirements and is suitable for teaching demonstrations, routine qualitative material identification, and low-cost research exploration, delivering stable and reliable measurement performance.

                                     Raman Spectrum of Alcohol



Fluorescence spectroscopy
The Spark cooled IoT micro-spectrometer provides high ultraviolet response, low noise performance, high spectral resolution, and flexible acquisition modes, making it well suited for fluorescence detection applications.

It is applicable to fluorescence material characterization, environmental pollutant fluorescence detection, and fluorescence labeling analysis of biological samples, supporting both scientific research and industrial testing requirements with stable and high-sensitivity measurement capability.

              Fluorescence Spectra of Carbon Dots under Different Reaction Conditions
