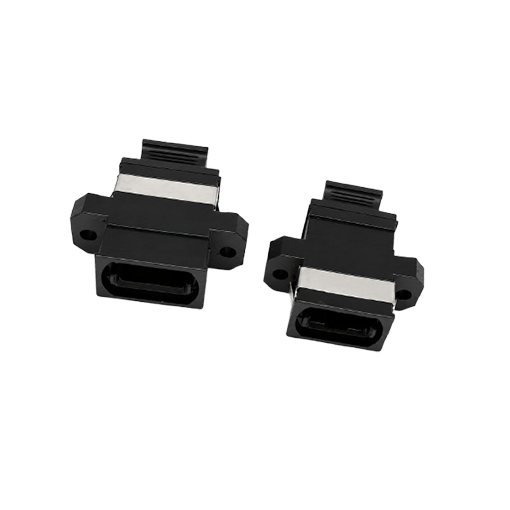

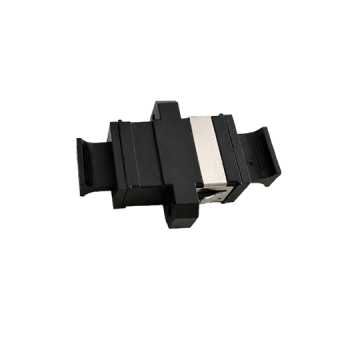

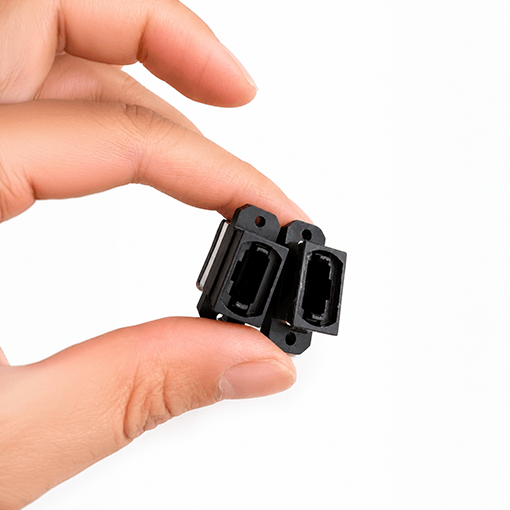

The MPO optical fiber adapter is a high-density fiber optic connectivity component designed for precise mating between MPO / MTP connectors, enabling stable and efficient optical signal transmission.
The adapter features a dual female interface and incorporates a high-precision alignment structure to improve fiber end-face alignment accuracy, reducing insertion loss and signal reflection. The housing is made of high-strength engineering plastic and combined with a metal spring clip retention design, providing secure installation and excellent durability. It is ideal for high-density fiber optic cabling applications.
Available in 8-fiber, 12-fiber, 16-fiber, 24-fiber, and 32-fiber configurations to meet diverse application requirements.
The adapter features a dual female interface and incorporates a high-precision alignment structure to improve fiber end-face alignment accuracy, reducing insertion loss and signal reflection. The housing is made of high-strength engineering plastic and combined with a metal spring clip retention design, providing secure installation and excellent durability. It is ideal for high-density fiber optic cabling applications.
Available in 8-fiber, 12-fiber, 16-fiber, 24-fiber, and 32-fiber configurations to meet diverse application requirements.
-
Features
- Supports high-density MPO / MTP fiber optic connections
- High-precision alignment design for improved mating accuracy
- Low insertion loss for stable transmission performance
- Excellent repeatability and interchangeability
- Equipped with dust caps to minimize contamination risk
- Good thermal stability for operation in various environments
-
Applications
Suitable for various high-density fiber transmission and cabling environments, including:
- Fiber optic communication systems
- High-speed data transmission
- Fiber optic CATV and Local Area Networks (LAN)
- Optical transceiver modules
- MPO / MTP patch panels and cabinets
-
Specification
| Item | MPO optical fiber adapter | |
| Fiber count | 8/12/16/24/32 fibers | |
| Interface type | MPO/MTP | |
| Flange type | Full flange | |
| Insertion loss | ≤ 0.3 dB (Typical) | |
-

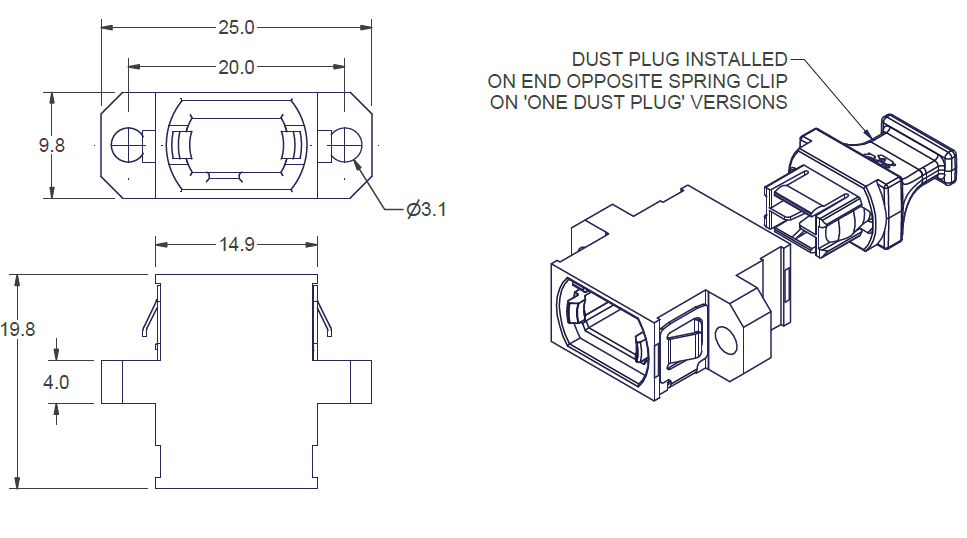

Dimensional drawing
