The LC (female) to LC (female) UPC fiber optic coupler is a high-quality connectivity solution designed for precise alignment and connection of various fiber types, including those with different ferrule sizes. It is specifically engineered for seamless integration within LC-based systems, offering a compact design that saves installation space and reduces the need for hybrid cable assemblies, helping network operators lower overall costs.
A fiber optic coupler, also known as a fiber adapter, is a key component used to connect two fiber optic cables or patch cords, ensuring stable and low-loss optical signal transmission.
A fiber optic coupler, also known as a fiber adapter, is a key component used to connect two fiber optic cables or patch cords, ensuring stable and low-loss optical signal transmission.
-
Features
- Low insertion loss: ≤ 0.3 dB
- Wavelength: 1310 / 1550 nm or 1260 / 1620 nm
- High reliability and stable connection
- Precision structure for telecom applications
- Equipped with dust caps to keep the fiber end faces clean
-
Specification
| Item | Single-Mode Simplex Coupler | |
| Model | OC-LC-FC-M | |
| Dimensions (mm) | Length: 19.98 Flange width: 22.10 |
|
| Quality | Clean and smooth surface, no cracks or burrs RoHS 2.0 compliant |
|
| Dust cap | Red | |
| Operating temperature | -40°C～+85°C | |
-

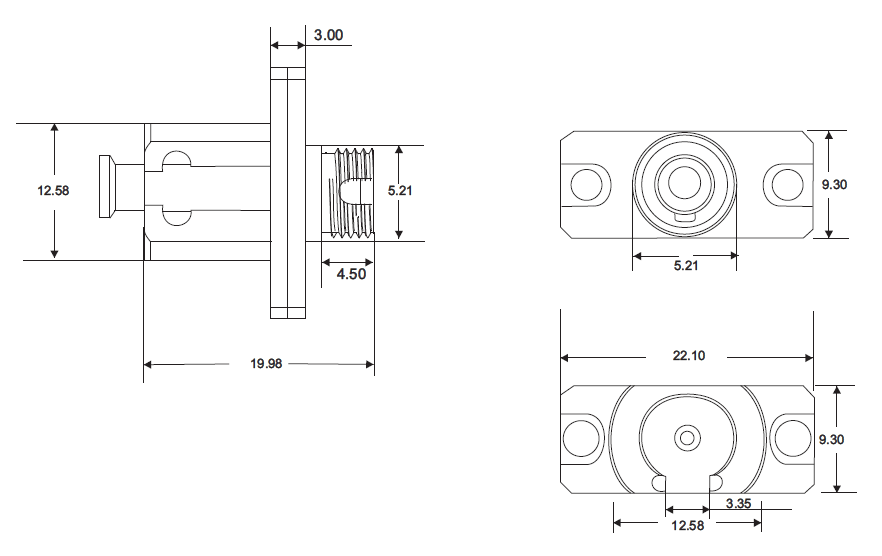

Dimensional drawing
