Features
- Adapter structure for easy connection and installation
- Suitable for telecom, CATV, and network applications
- Compliant with IEC standards for connector interfaces
- LC to LC fiber interface connection
- High interchangeability and reliability
- Low insertion loss and high return loss
-
Specification
| Item | Duplex Fiber Optic Coupler | |
| Model | OC-0249 | |

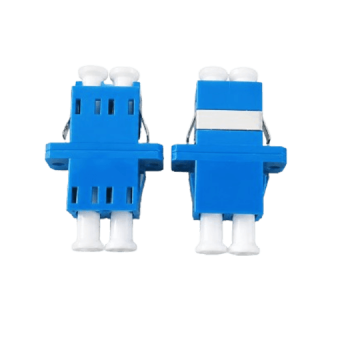

| Dimensions (mm) | Split type | Length: 25.6 ± 0.1 Width: 22.0 ± 0.1 |

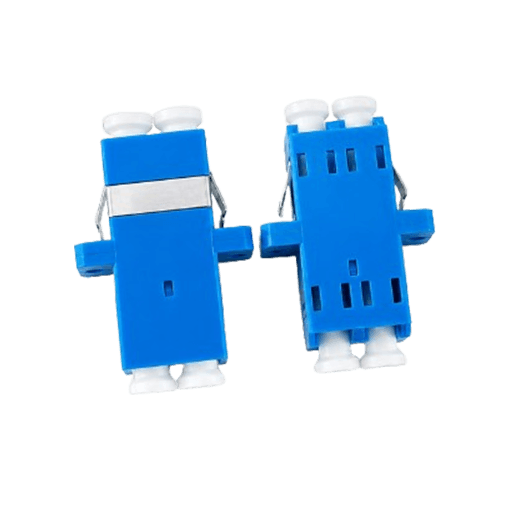

| Integrated type | Length: 29.2 ± 0.2 Front Width: 21.9 ± 0.2 |
|
| Housing material | PEI or equivalent engineering plastic | |
| Dust cap | White | |
| Structure | Duplex | |
| Operating temperature | -40°C to +85°C | |
-
Optical performance
- Insertion Loss: ≤ 0.5 dB
- Repeatability: ≤ 0.1 dB
-
Dimensional drawing
Split Type:
Integrated Type:
