Features
- Long-life operation
- Analog/TTL modulation
- Collimated straight beam
- High efficiency
- High reliability
-
Applications
- Laser show
- Display
- Laser Alignment
- Scanning Biochemistry
- Material Inspection Lidar

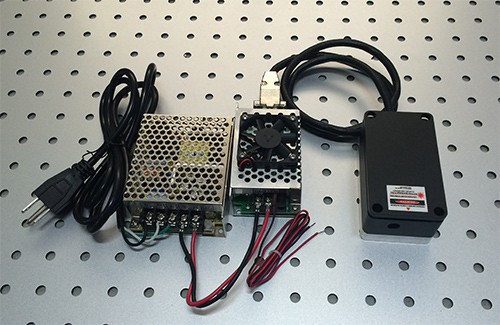

OEM type Laser Head is also offered (no fan, heat dispatched to bottom)
-
Specifications
| Model | OCLSR375 |
| Wavelength | 375/380+/-5nm |
| Spatial mode | Multi-mode |
| Output power | 1000mW |
| Operation mode | CW or Modulation |
| Beam height | 29mm |
| Beam size | 6.3x4.1mm |
| Beam divergence (full angle) | 1.5x0.27mrad |
| Power stability | <1% per 4 hrs |
| Warm up time | <1 minute |
| MTTF | 10,000 hrs |
| Laser head dimensions | 120(L)x56(W)x42(H)mm3 |
| Power supply | A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input B. Lab Adjustable type LSR-PS-FA: 178(W)x197(D)x84(H) mm3 85~265V 50/60Hz input |
| Modulation | 0~30khz Analog or TTL |
-

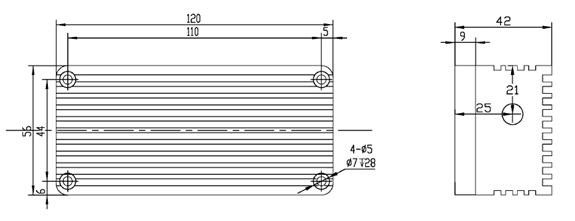

Laser head drawing (Unit: mm)
-
B. Lab adjustable power supply
