Near Infrared (NIR) Spectrometer - MS13913

DETAIL

MS13913 is a near-infrared fiber optic spectrometer based on symmetrical CT optical path design. It has a compact size and the spectral range can be configured as requested (900-1700nm). It features high resolution (the best up to 0.1nm) and low stray light (~0.1) and meanwhile, it has good spectral response stability and reproducibility. MS13913 is obviously a high-performance spectrometer which can be used for laser measurement, plasma emission spectrum measurement, color measurement, absorbance measurement and Raman measurement and other industrial field measurement.

Features
Spectral range: 900–1700 nm
Compact size with high reliability and repeatability
Compatible with Oceanhood multi-core dense cluster fiber (insertion consistency ≤7%)
Supports multiple communication interfaces: USB, RS232, and 24PIN interactive interface.
Configure proprietary DAC and ADC, can achieve supporting light source enable, intensity control and power feedback.

Specification

Optical parameters
Optical fiber interface	Key-SMA905
Pixels	256 pixels
Spectral range	900-1700nm
Stray light	~1%
Function parameters
AD sampling	16bit
Data interface	USB2.0、RS232
Extended function interface	24PIN
Detector integration time	100μs-5s

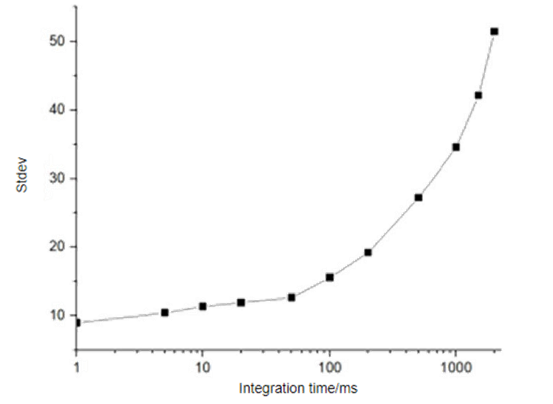

CCD read noise¹	≤30
CCD dynamic range	1000:1
Response linearity²	≥98%
Others
Weight	≈141g
Dimension	72×55×28.5mm
Operating temperature	0℃~40℃
Working humidity	20%-85%
1.CCD readout noise: RMS value of CCD readout noise at minimum integration time. 2.Response linearity: The response nonlinearity is measured before calibration.

Products

Model	Spectral Range		Spectral resolution
Model	Start	End	25µm	50µm
MS13913-900-1700	900	1700	-	7.00

► Spectral range and other parameters can be customized according to specific application requirements.
► Resolution may vary by approximately 120% from nominal values.
